Warehouse Layout Ideas with Mezzanine Floors: How to Plan the Zones, Flow and Access

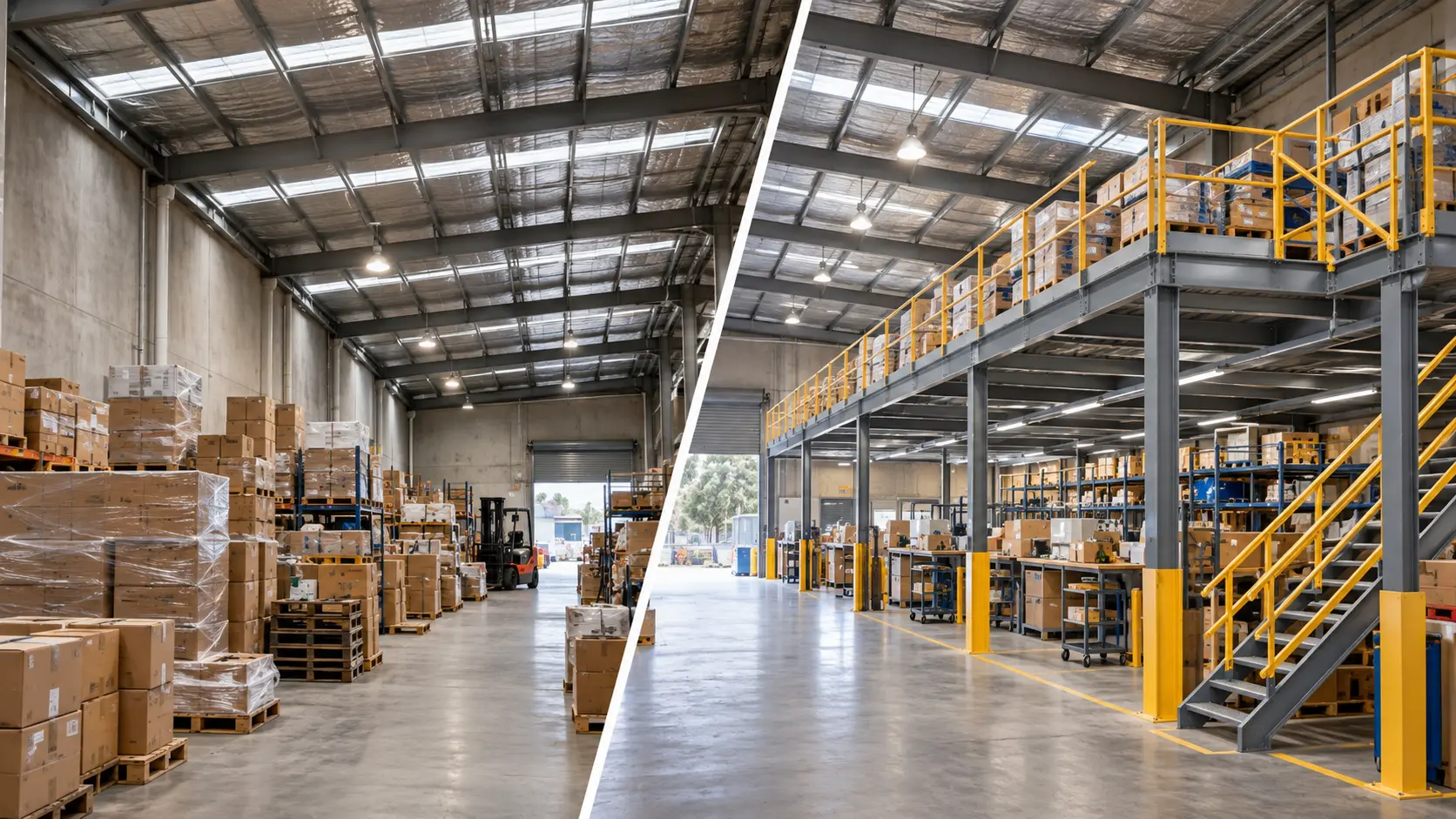

Most warehouse layout ideas with mezzanine floors start with the platform. The better ones start with the floor plan. Where do goods arrive, where do they rest, who needs to reach them, and how do people and forklifts avoid each other?

A mezzanine adds a second level, but the layout decides whether that level helps or hinders. This guide walks through the planning decisions we work through with clients at Factory Mezzanine Floors (FMF): zoning above and below, travel flow, column grids, aisle widths, and where stairs and pallet gates should go.

Start With Flow, Not Floor Area

Before you sketch a platform, map how product and people move through the building today. Follow a pallet from the dock to dispatch and note every stop, hand-off and crossing point.

You are looking for three things:

• Where congestion builds up, and at what time of day.
• Which tasks genuinely need forklift access to the ground floor.
• Which tasks only need people, light goods or a lift.

That last list is your candidate list for the upper level. Anything that depends on a forklift, heavy plant or dock proximity usually stays down. Anything done by people on foot, with smaller items, can often move up.

Warehouse Layout Ideas with Mezzanine Zoning: Above and Below

There is no single right answer, but a few zoning patterns come up repeatedly.

Pattern 1: Storage and handling below, people-based work above

Keep receiving, bulk storage and dispatch at ground level, close to the doors. Put packing benches, kitting, light assembly, admin or a pick-and-pack area on the mezzanine. Staff get a quieter working environment, and the forklifts keep clear travel lanes.

Pattern 2: Slow-moving stock above, fast-moving stock below

If your range has a long tail of low-turnover items, the upper level can hold them while fast movers stay at pick height on the ground floor. Pickers make fewer trips upstairs, and the busiest zone stays closest to dispatch.

Pattern 3: Pick from above, work below

Our Working Class Van project is a good example of this idea. The brief called for very high headroom so large vans could drive and park beneath the platform, service bays with minimal posts in the work area, and a fast "pick from stock above, install below" flow. You can read it here: https://factorymezzaninefloors.com.au/projects/working-class-van-mezzanine-2

Pattern 4: Offices over the operation

Placing offices above the floor gives managers sightlines over the operation and frees ground space.

Planning the Column Grid

Columns are where layout and structure collide. Every post that lands on your ground floor is a permanent obstacle for forklifts, racking and machinery.

Think about the column grid early, because it should respond to your operation rather than the other way around.

• Racking bays and aisles: Where possible, align posts with racking lines or the edges of work areas rather than landing them in the middle of an aisle.
• Machinery and service bays: Operations that need a clear working envelope, such as vehicle bays or production lines, may need longer spans with fewer posts.
• Pallet and skid movement: Wider clear spans make it easier to turn and manoeuvre loads beneath the platform.

Our Leading Dental Distribution project faced exactly this. The challenge was to create significant new floor area without choking the ground level, with clear spans needed for pallet and skid movements and storage: https://factorymezzaninefloors.com.au/projects/leading-dental-distribution-mezzanine

Longer spans can mean deeper beams, which affects the headroom you keep underneath. Our engineers balance span, beam depth, load and the height of your building as part of the design. For the technical side, see our page on engineered designs: https://factorymezzaninefloors.com.au/mezzanines/engineered-designs

Aisle Widths and Clearances

Aisle width is not a number we can give you in the abstract. It depends on the equipment you run, the loads you carry and how you turn.

Work from these inputs:

• The forklift or reach truck type, and its turning requirements.
• The size of your pallets and any overhanging loads.
• Whether traffic is one-way or two-way.
• Where pedestrians need to cross or walk alongside vehicles.

Then check three clearances on the plan. First, the headroom under the mezzanine for your tallest equipment and loads. Second, the headroom above for people working on the upper level. Third, the space around the posts so that a turning forklift does not clip them.

If your building has limited height, a slimmer floor structure can help you keep as much clearance as possible on both levels. Our Phase Tech Electrical project is an example, where a "skinny, strong" mezzanine floor was designed to maximise upstairs and downstairs height in a domestic shed.

Where Stairs Should Go

Stairs are easy to treat as an afterthought. They shape travel patterns every day, so put them in the plan early.

Good stair placement usually follows these principles:

• Put stairs where people already walk. If staff cross the warehouse to reach the packing area, bring the stairs to that route rather than forcing a detour.
• Keep stairs out of forklift lanes. The base of a staircase should not open into a busy vehicle path.
• Consider a second stair. Large or busy upper levels may need more than one point of access. The certifier will confirm the requirements for your building.
• Allow for landing space. People need room at the top and bottom, not just a staircase squeezed between racks.

Bailey Print Group's 400m² mezzanine included dual staircases, for instance: https://factorymezzaninefloors.com.au/projects/bailey-print-group

Details on stair design, handrails and edge protection are on our stairs page: https://factorymezzaninefloors.com.au/mezzanines/mezzanine-stairs

Where Pallet Gates and Goods Lifts Go

If goods move between levels, plan the loading edge as carefully as the stairs. A pallet gate lets a forklift place a load on the upper level while keeping the edge protected when the gate is closed.

Think about:

• Forklift approach: The gate needs a clear, straight approach below, with room to lift and place the load without clashing with posts or racking.
• Upper-level landing zone: Reserve floor space beside the gate so pallets can be set down and moved on without blocking the stair or an exit path.
• Separation from pedestrians: Keep the loading edge away from the main stair and walkways where possible.

Learn more about gates here: https://factorymezzaninefloors.com.au/mezzanines/pallet-gates and goods lifts here: https://factorymezzaninefloors.com.au/mezzanines/mezzanine-goods-lifts

Size, Approvals and Your Layout

Mezzanine size can influence how the building is assessed, so factor it in early. Under NCC 2022 Volume One, clause C2D3(4), a mezzanine is regarded as a storey when calculating rise in storeys if its floor area is more than 200 m² or more than one-third of the floor area of the room, whichever is the lesser. Two or more mezzanines at or near the same level are added together for this test (https://ncc.abcb.gov.au/editions/ncc-2022/adopted/volume-one/c-fire-resistance/part-c2-fire-resistance-and-stability).

That does not mean you should avoid a larger platform. It means your certifier or building surveyor should look at your layout early, and they will confirm what applies to your building. FMF manages council approval guidance as part of the process: https://factorymezzaninefloors.com.au/mezzanines/council-approval-guidance

Talk to Our Team About Your Layout

If you are weighing up warehouse layout ideas with mezzanine floors, bring your floor plan and a list of what is getting in the way. Our planning checklist is a good starting point: https://factorymezzaninefloors.com.au/blog/free-mezzanine-floor-planning-checklist

Call 1300 998 883 to book an obligation-free site consult or request a free quote.

Mark Slocum, Founder and Lead Consultant, Factory Mezzanine Floors

FAQs

How do I decide what goes on the mezzanine and what stays on the ground floor?

Keep anything that needs forklifts, heavy equipment or dock access at ground level. Move people-based tasks and lighter or slower-moving goods upstairs. A flow map of your current operation will show the natural split.
